Product Description:

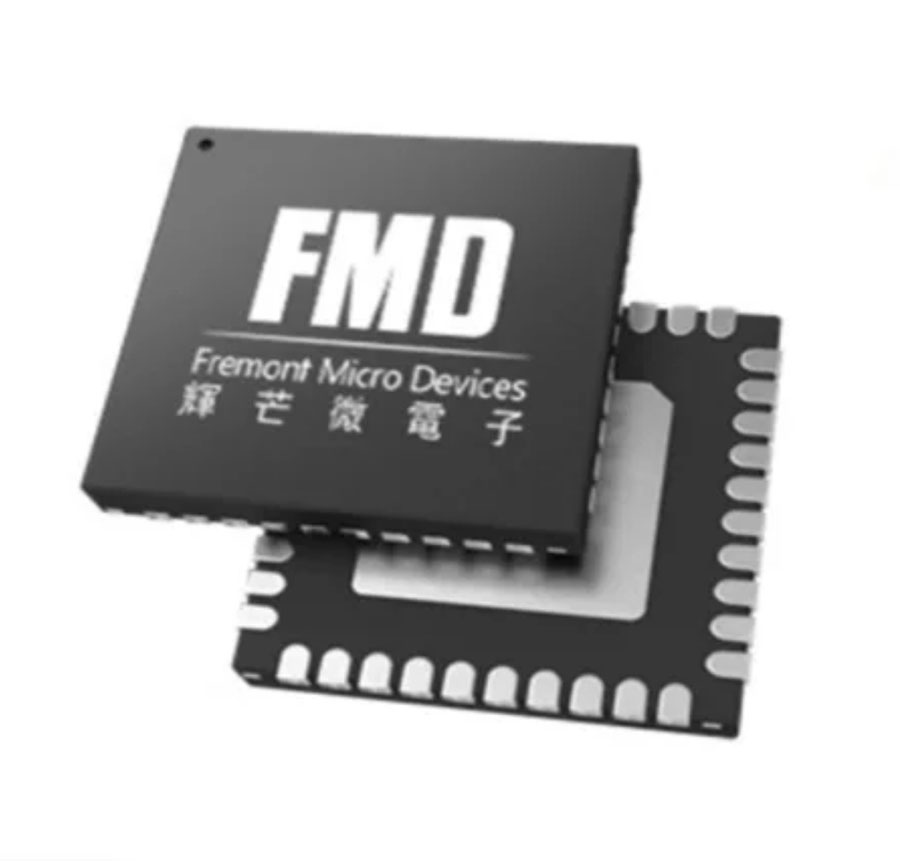

The FT32F103x8/B uses a high-performance ARM Cortex-M3 32-bit RISC core operating at up to 72 MHz, with built-in high-speed memory (up to 128K bytes of Flash and 20K bytes of SRAM) and a rich set of enhanced I/O ports. The chip provides a rich set of peripherals including two I2C interfaces, two SPI interfaces, three USART interfaces, one USB interface, one CAN, two 12-bit ADCs, and up to seven timers (one advanced, three general-purpose, two watchdogs, and one system). Three low-power modes ensure the requirements of low-power applications. Support SWD and JTAG interface debugging, 2 observation points as well as 6 hardware breakpoints for user-friendly debugging.

Application areas:

Medical equipment, PC peripherals, industrial control, smart meters, household appliances, etc.

CPU characteristics:

Operating voltage: 1.8V~5.0V

Operating Temperature Range: -40℃~105

-  ARM Cortex-M3 32-bit RISC-based core

Single instruction cycle 32-bit hardware multiplier

NVIC with 60 interrupt vectors and 16 priority levels.

Support SWD interface debugging, 2 watchpoints and 6 hardware breakpoints

- Memory Architecture

Flash programme memory: 128KB

 Data RAM: 20KB

- 3 low-power modes: Sleep/Stop/Standby

Peripheral Features:

- Clock Source

Built-in 8MHz oscillator

Built-in 40kHz low-frequency oscillator

Supports 4MHz-16MHz crystal and external clock input.

Supports 32 kHz low-frequency crystals and hardware calibration.

Crystal clock miss detection

Programmable PLL, up to 72MHz frequency doubling

- 26/37/51 high-speed IOs

1 programmable 7-channel DMA controller

Programmable polynomial CRC module

-  2 12-bit ADCs

16 external channels

Internal channels: temperature sensor, internal voltage reference

- Real-time clock and calendar RTC module

Supports intrusion detection, alarms and wake-up cycles

- Timer

TIM1-16bit, 4-channel PWM, support deadband control and emergency brake function

TIM2/TIM3/TIM4 -16bit, 4 independent channels support input capture, output compare, PWM and pulse counting etc.

2 watchdogs: WWDG and IWDG

1 24-bit system timer

Communication interfaces

2 I2C, of which I2C1 supports SMBus/PMBus

2 SPI, maximum transfer speed 18Mbps

3 USART, support ISO7816, LIN, IrDA, Modem control function

1 USB, support 2.0 full-speed protocol

1 CAN 2.0B
