Overview:

The ST05A touch sensor can detect changes in capacitance at the point of sensing using the average capacitance value as a reference. The ST05A can sense changes in capacitance through any non-conductive medium, so that the sensing module can be isolated from water and dust. This allows the sensor module to be isolated from water and dust. The ST05A has a high level of immunity to interference and good consistency. The chip can be operated in a low power environment with an operating current of 220ua at 5v and a standby current of less than 10ua, and is also suitable for battery applications.

Features.

● 5-channel sensor chip with self-calibration function.

● Can sense ‘key touch’ through any non-conductive medium.

● Adjustment of sensitivity by external capacitor.

● Open-Drain output.

● I2C interface.

● Operating voltage range: 2.1v~6.5v.

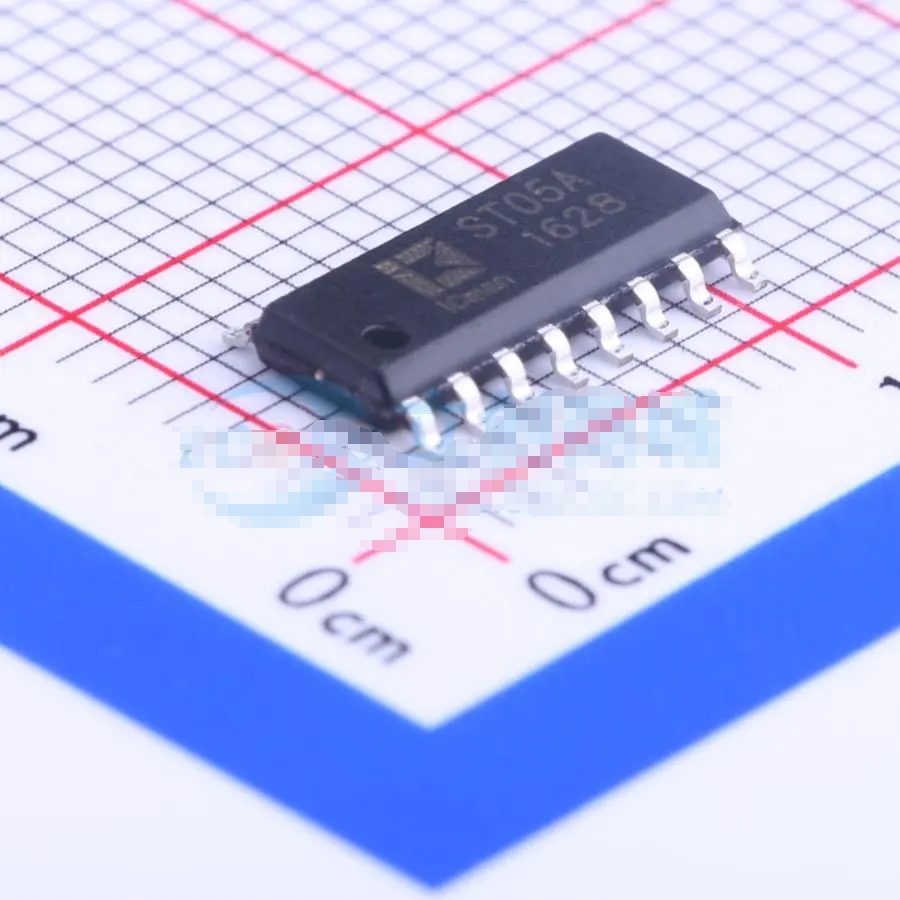

● Package:SOP16

Applications.

● Replacement switch.

● Human Sensor Detection.

● human interface for toys and interactive games.

● light switch.

● Replacement diaphragm switch.

● Sealed Keyboard Panels.
