Overview:

The ST08B touch sensor can detect changes in capacitance at the point of sensing using the average capacitance value as a reference. It can sense changes in capacitance through any non-conductive medium, which makes the sensing module more isolated from water and dust. The sensing module is thus well insulated from water and dust. The ST08B has better

immunity and better consistency than the ST08. The ST08B can be operated in a low power environment with an operating current of 220ua at 5v and a standby current of less than 10ua, and is also suitable for battery applications.

Features.

● 8-channel sense chip with self-calibration.

● Can sense ‘key touch’ through any non-conductive medium.

● Adjustment of sensitivity by external capacitor.

● Open-Drain output.

● I2C interface.

● Operating voltage range: 2.1v~6.5v.

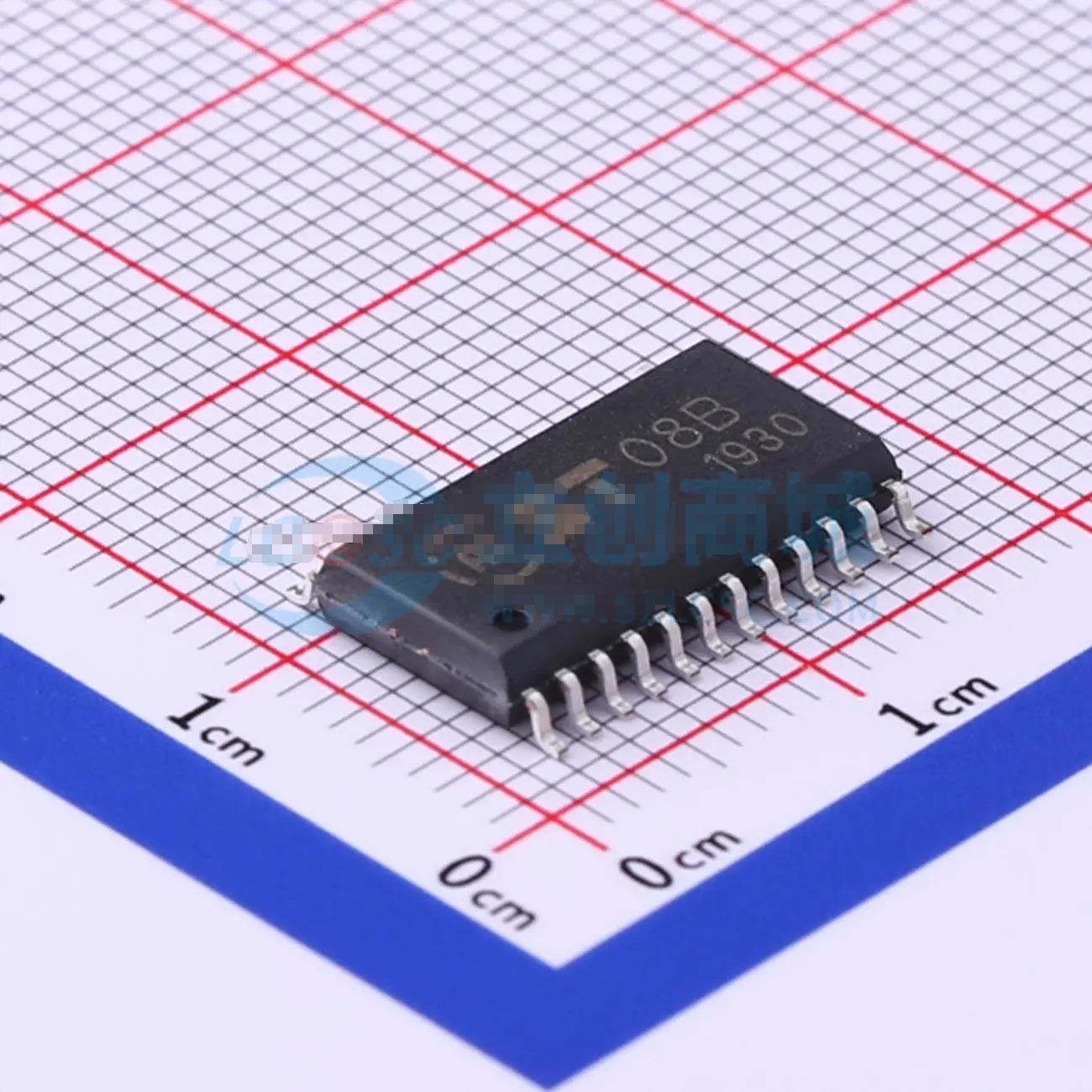

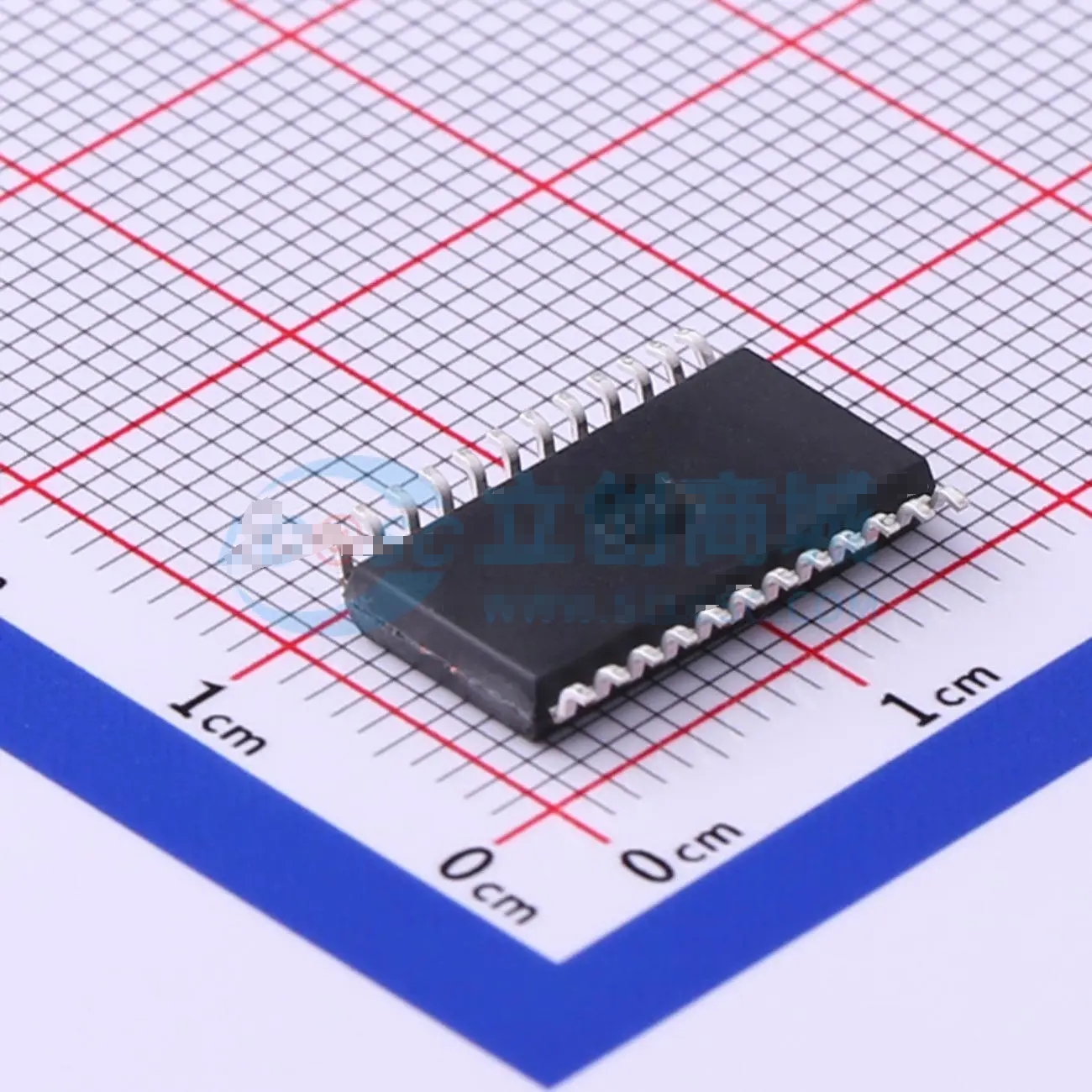

● Package:SOP24.

Applications.

●  Liquid height detection.

●  Replacement switch.

●Body Sensor Detection.

●  Human interface for toys and interactive games.

● light switch.

●Replacement Diaphragm Switches.

●Sealed Keyboard Panels.
