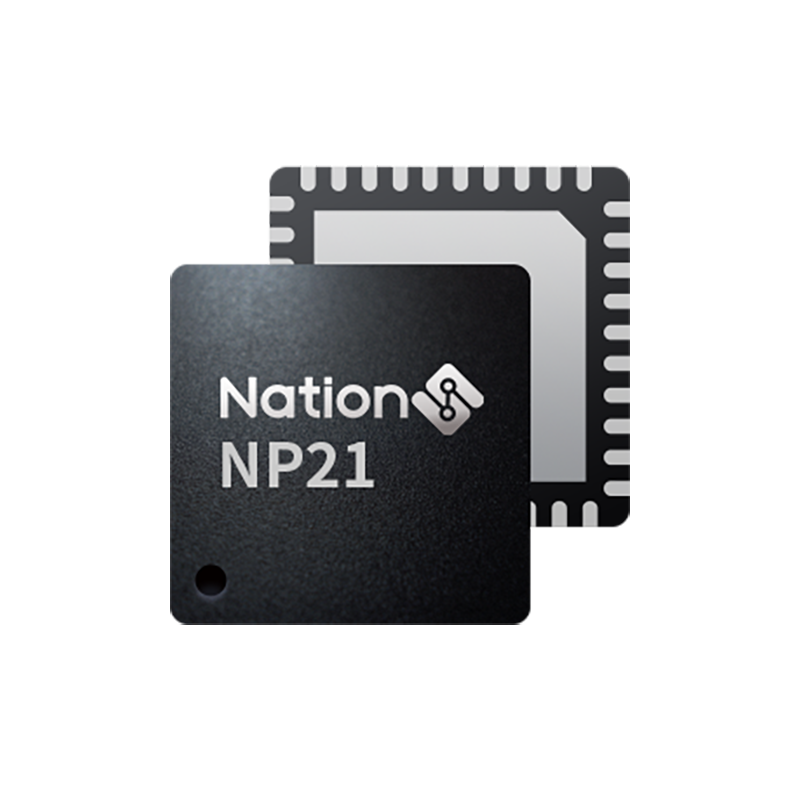

Nation NP21H8Q7

NP21 is a highly integrated USB Type-C PD or Type-A dual-port fast charging protocol chip with a built-in high-performance processor and large-capacity programmable Flash memory. The dual-port logic is independent, supports independent loop architecture, and the dual-channel power can be controlled independently. The chip integrates CC/CV control loop, bilateral discharge circuit and various system protection functions. The chip adopts a highly integrated design with few external components, providing a complete solution of high integration and low cost for adapters and car chargers.
DownLoad PDF>>
Contact us
Leave a Message

Device Model: NP21H8Q7

Flash (Kbytes): 64

CPU Core: Arm®Cortex®-M4

Maximum Main Frequency: 128

Operating Voltage/Operating Temperature: 3V~25V/-40~+85°C

CC1/CC2:2

DP/DM:2

TYPe-C Port Role:DRP*2

Integrated Driver:NMOS*2.

Protection Function: OVP/UVP/OCP/SCP/OTP

PD: PD3.1/PPS/QC4.0

Protocol: QC/FCP/SCP/AFC/UFCS

Package: QFN40

SPQ(PCS):490pcs


Typical Applications


AC adapters, car chargers, plugs, power tool battery packs, portable energy storage mobile power and other fast charging output input products.


How to Order

You can get your Nation NP21H8Q7 solution by flling out the form below and we will contact you immediately.
