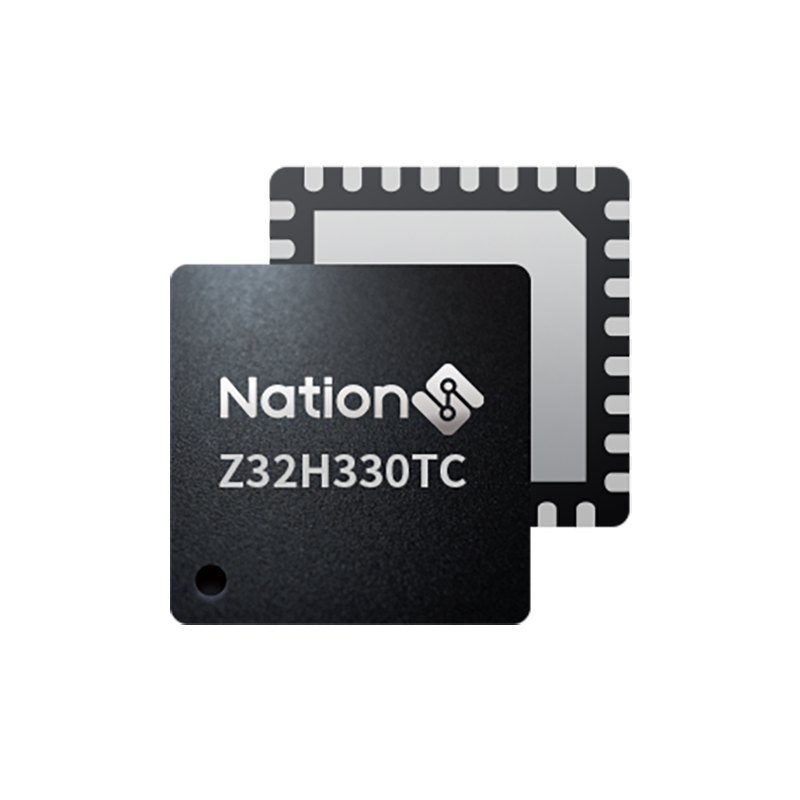

Model: Z32H330TC

Standards: conform to ISO/IEC 11889-2015 Information Security Trusted Computing Part I to Part IV; conform to GM/T 0011-2012 Trusted Computing Trusted Password Support Platform Function and Interface Specification; conform to GM/T0012-2020 Trusted Computing Trusted Password Module Interface Specification; conform to GM/T 0013-2021 Trusted Computing Trusted Password Module Conformity Test Specification; conform to GM/T 0058-2018 Trusted Computing TCM Service Module Interface Specification; conform to GB/T 29829-2022 Information Security Technology Trusted Computing Password Support. module compliance test specification; conforms to GM/T 0058-2018 Trusted Computing TCM service module interface specification; conforms to GB/T 29829-2022 Information Security Technology Trusted Computing Cryptographic Support Platform Function and Interface Specification.

Trusted processor: support the processing of ISO/EC 11889-2015 and GM/T0012-2020 protocols.

On-chip memory unit: support firmware upgrading download procedure and failure analysis assistant procedure; on-chip memory configuration support TCM, TPM2.0 applications

Supports Fagarose method: Supports Chinese commercial cryptographic algorithms SM2, SM3, SM4; Supports RSA2048/3072, ECC256/384, SHA1/256/384, AES128/256.

Communication interface: SPI interface, I²C interface

Others: support customisation, support the start of the active metric function

Operating Temperature Commercial Grade:-20C~85°C

Operating Temperature Industrial:-40°C~85°C

Typical Applications

The Z32H330TC chip can build a trusted information system and provide security services.tiswidev used in servers

computers.tablets.smartphones.empeddedsystems, loT devices, etc.
