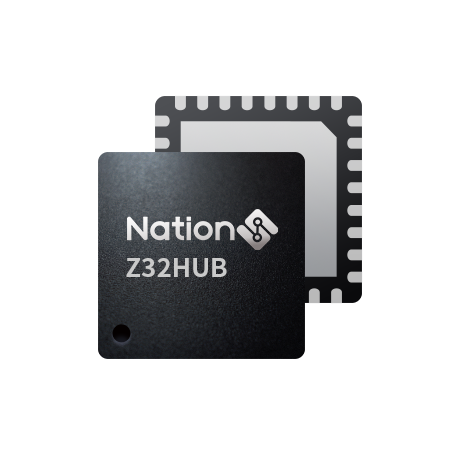

Nation Z32HUB

Z32HUB is a high-performance 32-bit USB KEY security chip with hardware USB2.0 Full Speed, with a 1-channel SPI main interface, a 1-channel UART interface, a specially customized headphone interface and a rich GPIO. It integrates 32-bit Arm® Cortex®-M0 high-performance security core, 16KB core external RAM and 320KB built-in Flash. The chip has built-in SM1/SM3/SM4 algorithm operation unit, a 64-bit public key cryptography engine (ECC/SM2/RSA1024/RSA2048) with 3KB dedicated RAM, DES/3DES algorithm operation unit, AES algorithm operation unit, SHA1/SHA256/SHA384/SHA512 algorithm operation unit and true random number generation circuit. The chip has passed EAL4+ security certification.

DownLoad PDF>>

Leave a Message

Product Resources

Model: Z32HUB

Flash (Kbytes): 320

RAM(Kbytes): 16

CPU Core: Arm®Cortex®-M0

Maximum main frequency: 60MHZ

Operating Voltage: 2.7V~5.5V

Operating temperature: -25°C~85°C

GPIO: 20

DMA/Channel Number: 1/2

ESD(HBM): ±4kV

Package: QFN32

Typical Applications

The Z32HUB security chip can meet the needs of most scenanos of loT security aplications, incuding smart home securty acces. smart door lock security acces smart meter reading, smart security gateway, security field, etc.

How to Order

You can get your Nation Z32HUB solution by flling out the form below and we will contact you immediately.
