Description：

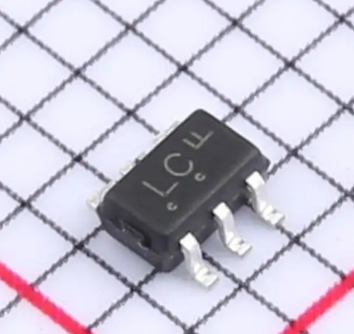

The ESD1L001 surge protection is designed to protect four highspeed data lines from ESD. Ultra−low capacitance and low ESDclamping voltage make this device an ideal solution for protectingvoltage sensitive high speed data lines. The small form factor,flow−through style package allows for easy PCB layout and matchedtrace lengths necessary to maintain consistent impedance betweenhigh speed differential lines such as USB 3.0 and HDMI.

Features：

• Low Capacitance (0.3 pF Typical, I/O to GND)

• Short to Battery Survivability

• Protection for the Following IEC Standards:IEC 61000−4−2 Level 4 (ESD)

• Low ESD Clamping Voltage (30 V Typical, +16 A TLP, I/O to GND)

• SZ Prefix for Automotive and Other Applications Requiring UniqueSite and Control Change Requirements; AEC−Q101 Qualified andPPAP Capable

• These Devices are Pb−Free and are RoHS CompliantTypical

Applications：

• USB2.0/3.0

• LVDS

• HDMI

• High Speed Differential Pairs
