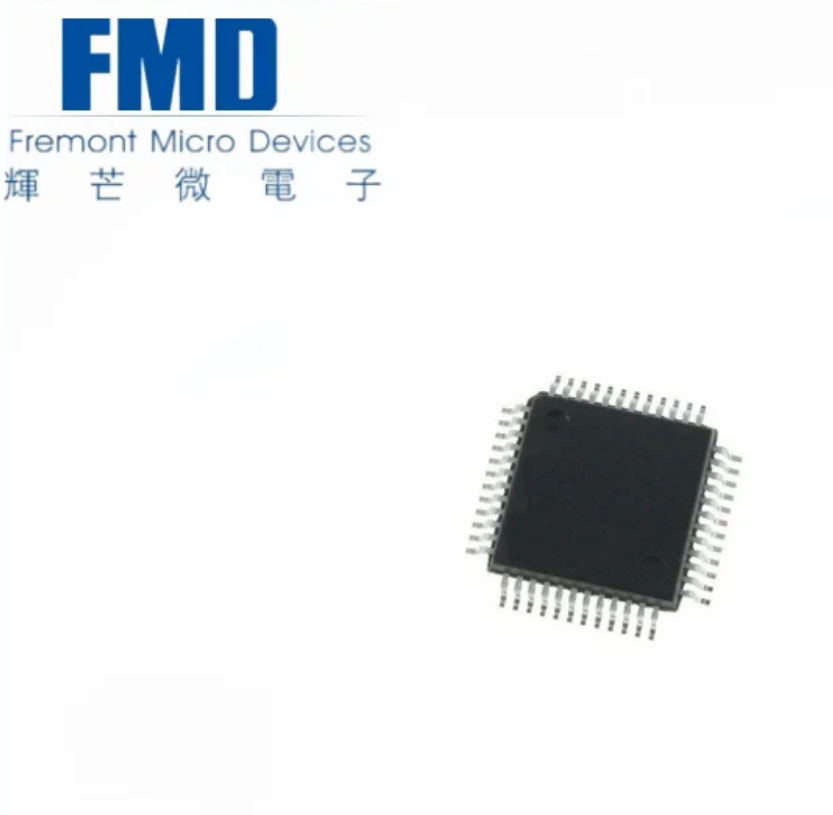

Product Description:

The FT32F072xx uses a high-performance ARM Cortex-M0 32-bit RISC core operating at up to 72MHz, with built-in high-speed memory (up to 64k bytes of Flash and 8k bytes of SRAM) and a rich set of enhanced I/O ports. The chip includes standard communication interfaces (2 I2C interfaces, 2 SPI interfaces, 2 USART interfaces and 1 USB interface), a 12-bit ADC and 7 general-purpose 16-bit counters and an advanced control PWM counter. In addition, the chip has a built-in touch sensor, providing 24 capacitive sensing channels, which can be applied to products requiring touch control. Three low-power modes ensure the requirements of low-power applications. It supports SWD interface debugging, 2 observation points and 4 hardware breakpoints, which is convenient for users to debug.

Application Areas:

Application control and user interface, handheld devices, A/V receivers and digital TVs, PC peripherals, gaming and GPS platforms, industrial applications, programmable controllers, inverters, printers, scanners, alarm systems, video intercom and HVAC.

CPU Features:

Operating Voltage: 2.0V ~ 5.5V

Operating Temperature Range: -40°C ~ 105°C

ARM Cortex-M0 32-bit RISC-based core

Single instruction cycle 32-bit hardware multiplier

NVIC with 32 interrupt vectors, 4 priority levels

Support SWD interface debugging, 2 watchpoints and 4 hardware breakpoints

Memory Architecture

Flash programme memory: 64KB

Data RAM: 8KB

3 low-power modes: Sleep/Stop/Standby

Peripheral features:

Clock Source

Built-in 40KHz low frequency oscillator

Built-in 14MHz mid-frequency oscillator

Built-in 48MHz high frequency oscillator, support hardware calibration

Support 32KHz low frequency crystal, support hardware calibration

Supports 4MHz-32MHz crystal and external clock inputs

Programmable PLL, can be multiplied up to 96MHz

55 high-speed IOs

Mappable to external interrupt vectors

PA8~PA10, PA13~PA15, PB0~PB1, PB3~PB7 support LED driver.

All I/Os support 1/2VDD bias

5-channel programmable DMA controller

Programmable polynomial CRC module

1 Msps 12-bit ADC

16 external channels

Internal channels: temperature sensor, internal voltage reference, 2 op-amps and 2 sample-and-hold circuits

Internal reference voltage: 2.5V

2 high-speed comparators

7-bit DAC connected to inverting terminal, configurable

1 operational amplifier

Op-amp output can be used as ADC input

Real-time clock and calendar RTC module

Supports intrusion detection, alarms and wake-up cycles

10 timers

TIM1, 16-bit, 4 PWM, support 3 complementary pairs

TIM3, 16-bit, 4-way PWM

TIM14, 16-bit, 1 channel PWM

TIM15, 16-bit, 2-way PWM, supports 1 complementary pair

TIM16/TIM17, 16-bit, 1 PWM, support 1 complementary pair

TIM6, 16-bit, basic timer

2 watchdogs: WWDG and IWDG

1 x 24-bit system timer

3 leading edge fading counters and 4 filters

Up to 14 PWM Fade Trigger Sources and 4 IO Fade Trigger Sources

1 IO filter and 3 comparator filters

Communication interfaces

2 I2C, with I2C1 supporting FM+ and SMBus

2 SPI, supporting 4 to 16 bit bit frames

2 USART, support synchronous SPI mode and Modem control, automatic baud rate detection

1 USB, support 2.0 full-speed protocol

Touch Sensor Controller

24 touch keys

Support 2 sets of I/O scanning at the same time
