Product Description:

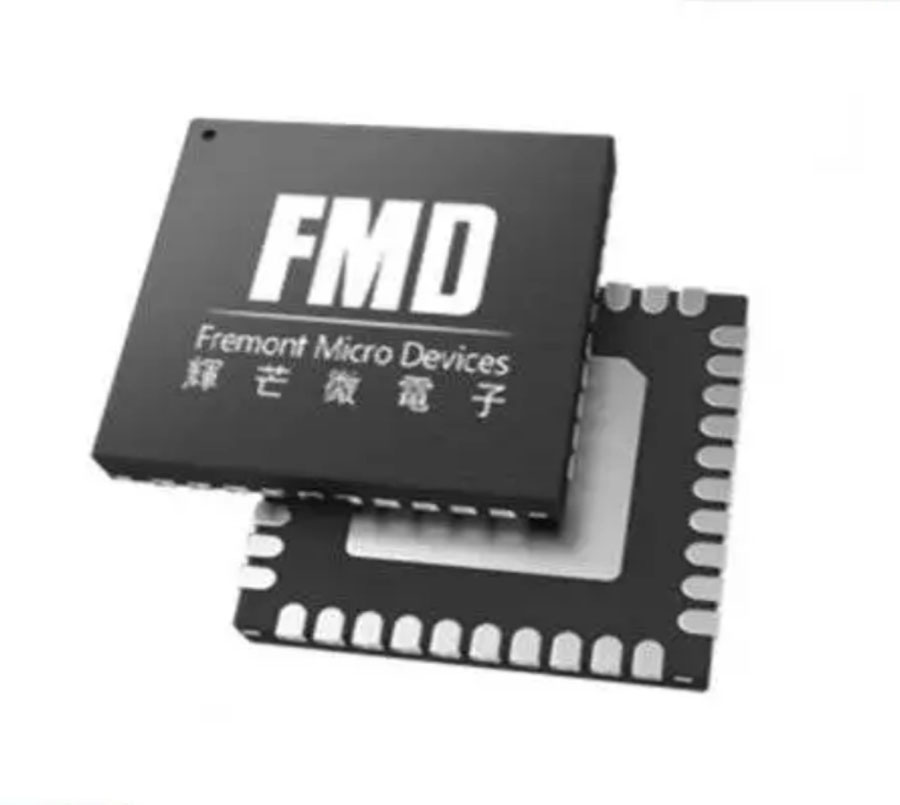

The FT32F113xx uses a high-performance ARM Cortex-M3 32-bit RISC core operating at up to 72 MHz, with built-in high-speed memory (up to 128K bytes of Flash and 20K bytes of SRAM) and a rich set of enhanced I/O ports. The chip provides a rich set of peripherals including two I2C interfaces, two SPI interfaces, three USART interfaces, one USB interface, one CAN, two 12-bit ADCs, and up to seven timers (one advanced, three general-purpose, two watchdogs, and one system). Three low-power modes ensure the requirements of low-power applications. Support SWD and JTAG interface debugging, 2 observation points as well as 6 hardware breakpoints for user-friendly debugging.

Application areas:

Medical equipment, PC peripherals, industrial control, smart meters, household appliances, etc.

CPU characteristics:

Operating voltage: 1.8V~5.0V

Operating Temperature Range: -40℃~105

Based on ARM Cortex-M3 32-bit RISC core

Single instruction cycle 32-bit hardware multiplier

NVIC with 60 interrupt vectors, 16 priority levels

Support SWD interface debugging, 2 watchpoints and 6 hardware breakpoints

Memory Architecture

Flash programme memory: 128KB

 Data RAM: 20KB

3 low-power modes: Sleep/Stop/Standby

Peripheral features:

Clock Source

Built-in 8MHz oscillator

Built-in 40kHz low frequency oscillator

 Supports 4MHz-16MHz crystals and external clock inputs

Supports 32 kHz low-frequency crystals and hardware calibration

Crystal clock miss detection

Programmable PLL, up to 72MHz multiplier

37/51/80 high-speed IOs

1 programmable 7-channel DMA controller

Programmable polynomial CRC module

2 x 12-bit ADCs

16 external channels

Internal channels: temperature sensor, internal voltage reference

Real-time clock and calendar RTC module

Supports Intrusion Detection, Alarm Clock and Wake-Up-Cycle

Timer

TIM1 -16bit, 4 channels PWM, support deadband control and emergency brake function

TIM2/TIM3/TIM4 -16bit, 4 independent channels support input capture, output comparison, PWM and pulse counting functions

2 watchdogs: WWDG and IWDG

1 24-bit system timer

Communication interfaces

2 I2C, of which I2C1 supports SMBus/PMBus

2 SPI, maximum transmission speed 18Mbps

3 USART, support ISO7816, LIN, IrDA, Modem control function

1 USB, support 2.0 full-speed protocols

1 CAN 2.0B
