Product Description:

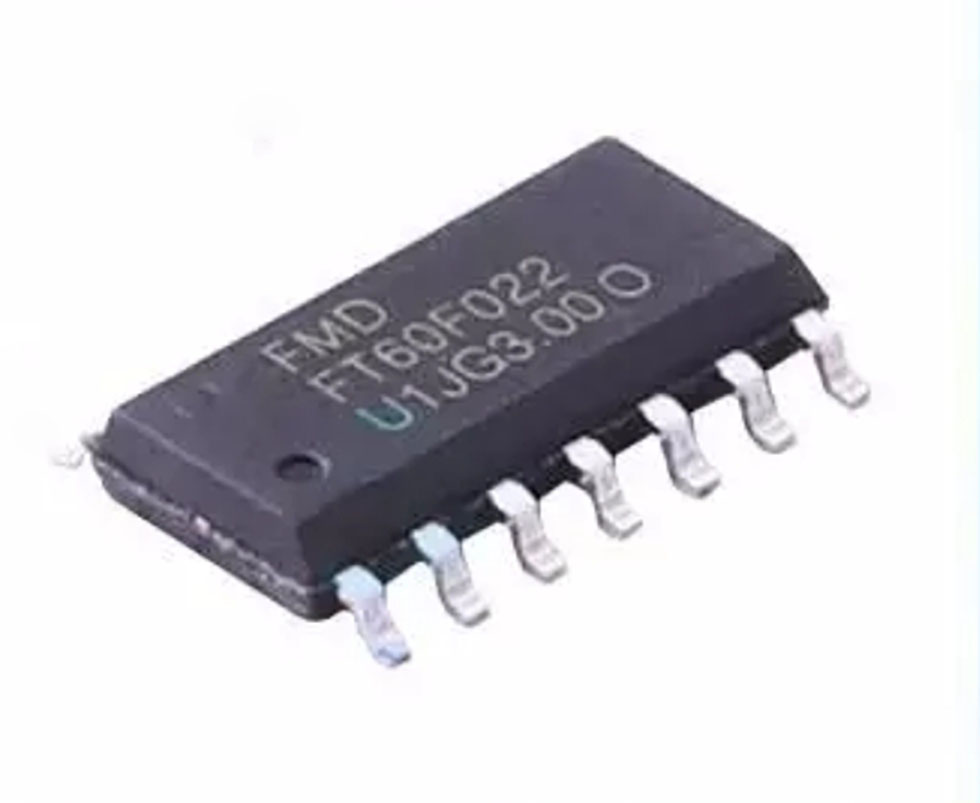

The FT60F02X is an I/O type 8-bit microcontroller with compact instruction set and 2T/4T instruction cycle selectable. It features a wide operating voltage range of 2.0V to 5.5V, provides up to 16 general-purpose IOs, supports external crystal 16MHz or 32KHz mode, has two built-in high-speed and high-precision comparators, supports in-circuit system programming ISP and in-circuit debugging, and offers SOP14 and SOP18 package options.

Application areas:

Access control system/alarm, lighting control, small home appliances, remote control, etc.

CPU characteristics:

Operating voltage: 2.0V~5.5V

RISC architecture, only 37 instructions to learn

All instructions are single-cycle except branch jumping

Optional instruction cycle: 2T/4T

Minimum instruction cycle is 125ns (VDD>2.7V)

Memory Architecture

Programme memory: 2K x 14bits

Data RAM: 128 x 8bits

Data EEPROM: 256 x 8bits

8-layer hardware stack

Low power mode SLEEP

Peripheral Features:

Clock Source

16M high-speed high-precision HIRC

32K low speed low power LIRC

Crystal oscillator and external clock input

Crystal clock miss detection

16 bi-directional IOs

7 IOs with independent pull-up control

Port change interrupt, PA0~PA7

Timer

1 x 8bit Basic Timer0

1 x 8bit Timer2

16-bit watchdog with 3-bit post-split frequency

Power-on reset delay counter

2 x General Purpose Comparators

Programmable on-chip reference voltage

Comparison results can be directly output

Low voltage reset LVR: 2.0V/2.2V/2.8V

Supports ISP and in-circuit debugging OCD

Operating temperature range: -40°C~85°C

Program space protection
