Product Description:

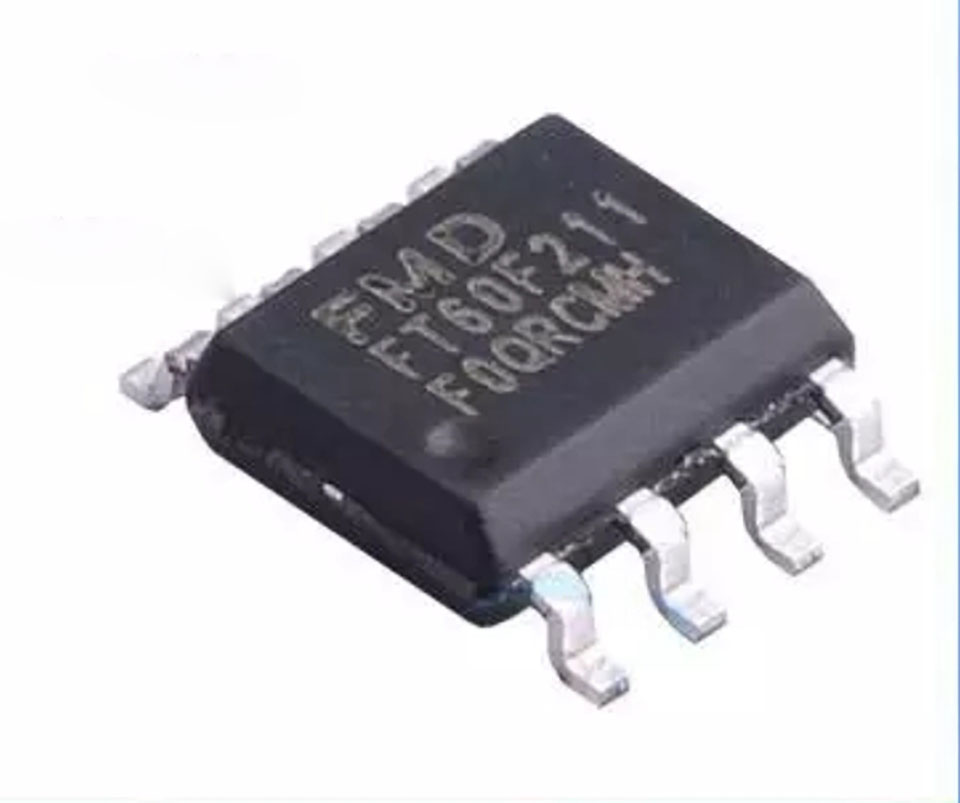

The FT60F21x is a compact instruction set IO type 8-bit microcontroller with 4T instruction cycle, specially designed for low cost timer applications. This series of chips has a flexible use of timer/counter, can provide external event counting function, while its clock source is selectable, can continue to work in low-power mode. 6 pins with independent pull-ups, can directly drive the LED digital tube, saving the current-limiting resistor. Built-in watchdog timer, plus excellent anti-interference and ESD protection features to ensure that the chip can be reliable operation in harsh environments. The chips are available in SOT23-6 and SOP8 packages.

Application areas:

Switching LEDs, chargers, alarm clocks and household appliances, etc.

CPU characteristics:

Operating voltage: 1.9V~5.5V

RISC architecture, only 37 instructions to learn

Instruction cycle: 4T

 Minimum instruction cycle is 250ns, 16MHz@4T (VDD≥2.7V)

Memory Architecture

Programme memory: 1k x 14bits

Data RAM: 64 x 8bits

Data EEPROM: 128x 8bits

8-layer hardware stack

Low power mode SLEEP

Peripheral Characteristics:

Clock Source

16M high-speed high-precision HIRC

32K low speed low power LIRC

External Clock Input

Up to 6 general-purpose IOs

6 port change interrupts

6 pins with independent pull-up function, can be turned on at the same time to achieve 1/2VDD bias, direct drive LED digital tube

1 external reset pin

Timer

1 x 8bit Timer0, clock source selectable

1 x 16bit Timer2, clock source selectable

16-bit watchdog with 3-bit post-scaler

Power-on reset delay counter

Low Voltage Reset LVR: 2.0V/2.2V/2.5V/2.8V/3.1V/3.6V/4.1V

Low Voltage Detection LVD: 1.2V/1.8V/2.0V/2.4V/2.7V/3.0V/3.6V/4.0V, or detects external inputs and can be used as a comparator.

Support ISP and online debugging OCD

Operating temperature range: -40°C~85°C
