Product Description:

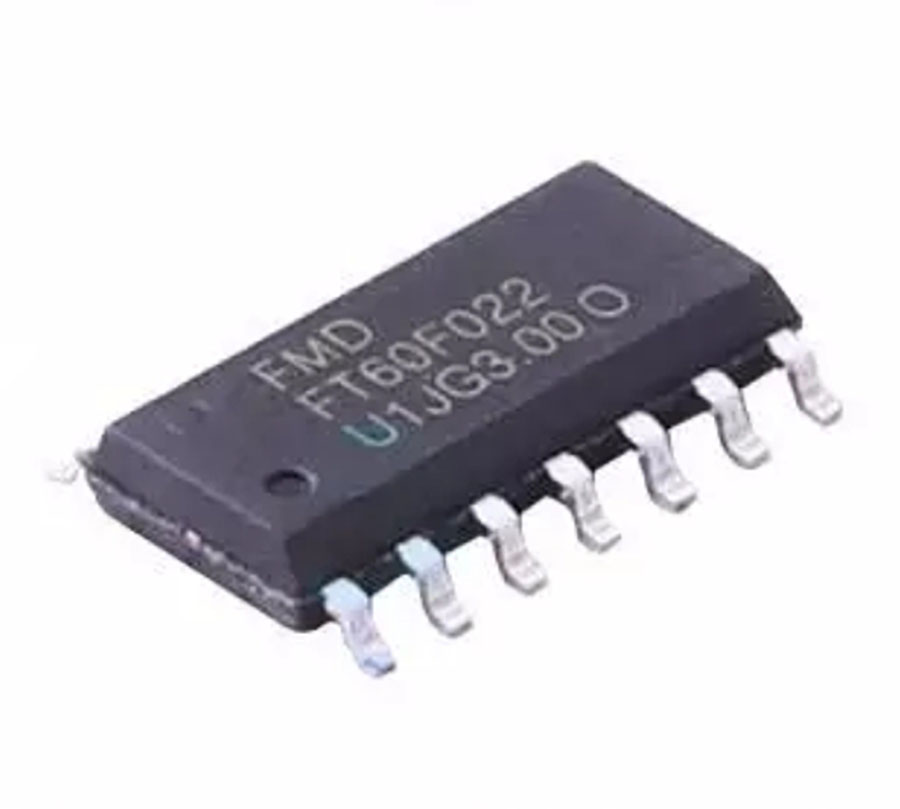

FT61F02X is a Pfiman Microelectronics A/D type 8-bit series microcontroller with 2T/4T instruction cycle selectable. It is specially designed for products requiring A/D conversion, such as sensor signal input. This microcontroller features wide voltage operating range from 2.0V to 5.5V, multi-channel A/D conversion, high endurance EEPROM, built-in 16MHz high-speed RC oscillator, built-in 32KHz low-speed RC oscillator, under-voltage detection, support for in-system programming ISP and in-circuit debugging, and is available in three packages, namely SOP8, SOP14 and SOP18.

Application Areas:

Access control systems/alarms, temperature sensing devices, lighting control, instrumentation, small appliances and so on.

CPU characteristics:

Operating voltage: 2.0V~5.5V

RISC architecture, only 37 instructions to learn

All instructions are single-cycle except branch jumping

Optional instruction cycle: 2T/4T

Minimum instruction cycle is 125ns (VDD>2.7V)

Memory Architecture

Programme memory: 2K x 14bits

Data RAM: 128 x 8bits

Data EEPROM: 256 x 8bits

8-layer hardware stack

Low power mode SLEEP

Peripheral Features:

Clock Source

16M high-speed high-precision HIRC

32K low speed low power LIRC

Crystal oscillator and external clock input

Crystal clock miss detection

Dual-speed start-up mode

14 bi-directional IOs

14 IOs with independent pull-up control

4 IOs with independent pull-down control

Port change interrupt, PA0~PA7

Timer

1 x 8bit basic Timer0

1 x 16bit Timer1, support capture compare function

1 x 8bit Timer2, support complementary PWM with deadband

3 x 12bit Timer3/4/5, 3 x 12bit PWM with BUZZER mode support

16-bit watchdog with 7-bit prescaler

10-bit ADC, supports 8 channels (7 external channels + 1 internal 1/4VDD channel)

Reference voltage selectable: external Vref, VDD, internal 2V/3V

Power-on reset delay counter

2 general purpose comparators

Low Voltage Reset LVR: 2.0V/2.2V/2.5V/2.8V/3.1V/3.6V/4.1V

Low Voltage Detect LVD: 2.0V2.4V/2.8V/3.0V/3.6V/4.0V

Support ISP and online debugging OCD

Operating temperature range: -40°C~85°C

Program space protection
