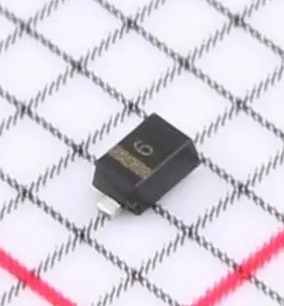

Zener Diodes, 40 Watt Peak Power

SOT−23 Dual Common Cathode Zeners

These dual monolithic silicon zener diodes are designed forapplications requiring protection capability. They are intended for use involtage and ESD sensitive equipment such as computers, printers,business machines, communication systems, medical equipment andother applications. Their dual junction common cathode design protectstwo separate lines using only one package. These devices are ideal forsituations where board space is at a premium.

Specification Features:

• SOT−23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration

• Standard Zener Breakdown Voltage Range − 15 V, 27 V, 39 V

• Peak Power − 40 W @ 1.0 ms (Bidirectional),per Figure 5 Waveform

• ESD Rating of Class 3B (exceeding 16 kV) per the HumanBody Model

• ESD Rating of IEC61000−4−2 Level 4, ±30 kV Contact Discharge

• Low Leakage < 100 nA

• Flammability Rating: UL 94 V−O

• SZ Prefix for Automotive and Other Applications Requiring UniqueSite and Control Change Requirements; AEC−Q101 Qualified andPPAP Capable

• These are Pb−Free Devices

Mechanical Characteristics:

CASE: Void-free, transfer-molded, thermosetting plastic case

FINISH: Corrosion resistant finish, easily solderable

MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:260°C for 10 Seconds
